Timloc Everdry Cavity Tray

Timloc Everdry adjustable stepped cavity trays for brickwork are used for the following applications.

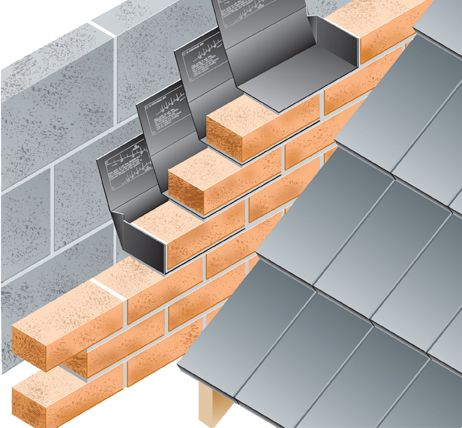

• At the abutment of a pitched roof with a cavity wall

• On external walls – not exceeding 120mm thickness – built from standard brickwork or similar sized components with regular course heights, including mortar of approx. 75mm

• On roof pitches of 25 degrees and above

• Cavity widths of between 50mm – 110mm

Advantages

• 195mm high back upstand

• Adjustable upstand to cover 50mm – 110mm cavities

• Roof pitch marks on tray upstand to give installation guidance

• Cavity tray builds to outer leaf only to speed up installation and allowing both inner and outer leafs to be built independently if required

• BBA approved
